Discovery
In early May 2026, Chinese military enthusiasts published videos and photos of a new Z-21 attack helicopter conducting a test flight while carrying an auxiliary fuel tank mounted under its fuselage. Based on visual analysis, the tank appears to be about 3.15 meters long and weigh approximately 750 kilograms. An image from mid-March 2026 also showed a Z-21 conducting a test flight with two external fuel tanks mounted beneath the fuselage on either side. Together, those tanks likely weighed 500 kilograms.
These external fuel tanks would likely extend the Z-21’s combat range from 400 kilometers to approximately 600 kilometers—or potentially to 800 kilometers if two additional tanks were mounted to the innermost hardpoints on the helicopter’s stub wings. During the test flights with fuel tanks, however, the helicopter did not carry its 30mm chain gun or mast-mounted millimeter wave radar.

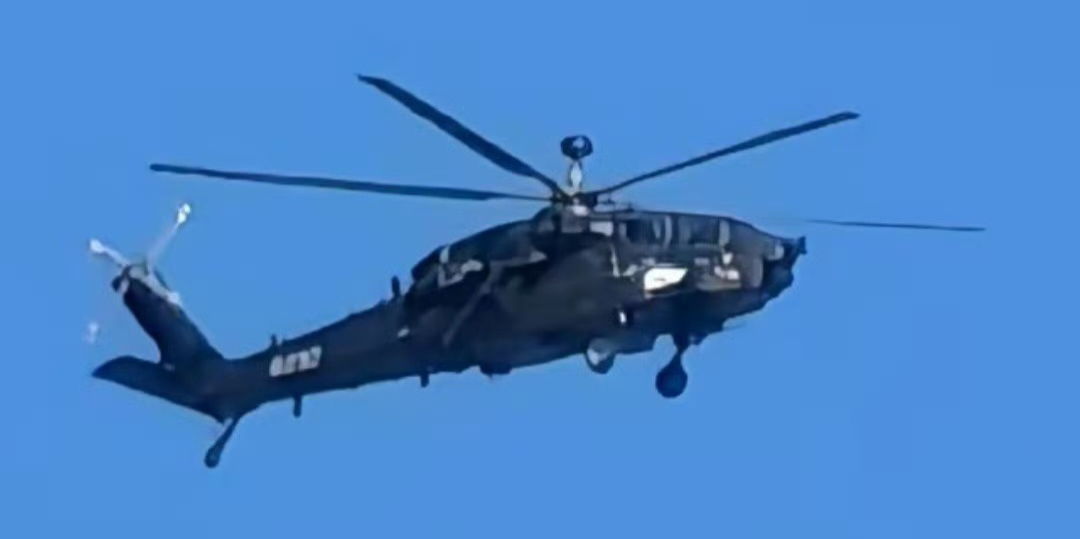

Figure 1. The new PLA Army Z-21 helicopter equipped with a mast-mounted millimeter wave radar during a test flight
(Source: Shuxingti [
数性体], “
〔宣传号〕•中国重武直-21……” [Promotional Account: China’s Heavy Z-21 Attack Helicopter…],
微博 [Weibo], May 1, 2026,
https://m.weibo.cn/detail/5293902972060837.)
Analysis
The Z-21’s test flights with external fuel tanks suggest the helicopter is likely in the final stages of development and could be inducted into service with the PLA Army (PLAA) by the end of 2027. Even so, the PLAA would still need significant time to develop doctrine and tactics, techniques, and procedures (TTPs) for employing the aircraft in anti-armor, close air support (CAS), and other missions.
These tests are important because Harbin Aircraft Industry Group has limited experience developing external fuel tanks for helicopters (such as the Z-21), which increases the time required to validate the associated technologies. China’s limited experience building heavy attack helicopters also compounds this challenge. This doctrinal development matters because the PLAA previously operated the Z-10 attack helicopter and the Z-19 reconnaissance helicopter, neither of which offers the full set of capabilities expected from the Z-21. For example, the Z-21 could provide stronger CAS with its 30mm chain gun and conduct gun runs against a wider range of targets.

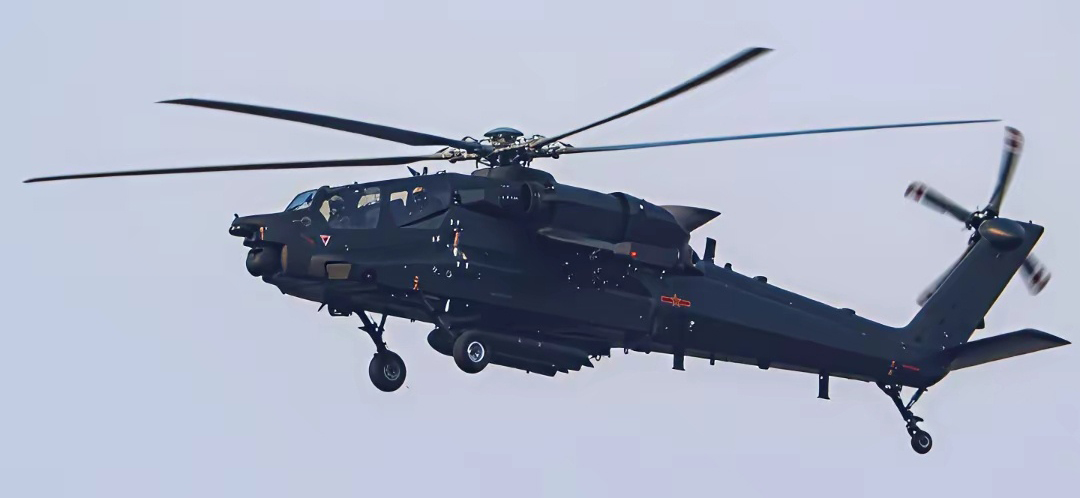

Figure 2. The new PLA Army Z-21 helicopter carrying external fuel tanks during a test flight
(Source: Nangong Wenjian [
楠宫问剑]. “
重直强鳖直-21” [Z-21 Heavy Vertical Lift Helicopter],
微博 [Weibo], March 19, 2026,
https://m.weibo.cn/detail/5278461067527292.)
The Z-21 would also be better positioned to launch laser-guided and radar-guided variants of the AR-1 air-to-ground anti-tank missile, as well as other advanced air-to-ground missiles, against tanks and fortifications at longer ranges without requiring modification or upgrades. In addition, it could launch loitering munitions from hardpoints on its stub wings or fuselage undercarriage. At the same time, the absence of either the chain gun or the mast-mounted millimeter wave radar during fuel-tank test flights likely indicates that carrying all of these systems makes the Z-21 too heavy to take off. That limitation forces pilots and mission planners to decide which combination of range and onboard capabilities best supports a given mission.
Implications
The Z-21’s external fuel tanks could enable the PLAA to use the helicopter’s advanced capabilities in increasingly complex long-range combat missions. At the same time, the doctrine and TTPs developed for the aircraft could help the branch employ it more effectively and improve mission success. More specifically, the PLAA could leverage the Z-21’s longer range to deliver more lethal kinetic fires across a variety of missions, including air support, anti-armor operations, and escort duties for transport helicopters. This capability would prove especially important to the air assault component of a Taiwan invasion, which would require helicopters to conduct missions far from the Chinese mainland.
During the beach landing phase of an invasion, the PLAA could employ the Z-21 alongside the Z-10 and Z-19 helicopters in hunter-killer teams targeting armored vehicles and fortifications. Alternatively, it could use the Z-21 to escort Z-20 helicopters and provide CAS during air assault operations. The Z-21 could also conduct independent deep-air support and CAS missions against targets intended to degrade the ability of US and Taiwanese forces to respond to beach landings.
Strategic Message
The Z-21’s external fuel tanks are part of China’s broader effort to develop equipment that allows it to operate alongside other helicopters, such as the Z-10 and Z-20, during long-distance missions. The PLAA recognizes that much of its current attack-helicopter inventory is not well suited for extended-range operations because of limited endurance, even though the Z-10 can use external fuel tanks. The Z-21’s tanks could overcome that shortfall by providing aviation brigades with a stronger long-range attack capability. They could also expand the options available to PLAA planners when developing logistical support plans for helicopter combat operations.
This planning flexibility matters because a Taiwan invasion would likely offer limited refueling and rearming options. The PLAA would likely rely on semisubmersible ships and other flat-deck vessels as forward arming and refueling points (FARPs), thereby constraining rotary-wing operations. By extending the Z-21’s time on station, the external fuel tanks could allow the helicopter to operate longer before refueling at a FARP. That added endurance would allow the PLAA to focus more support on helicopters that cannot carry external tanks or enough fuel to return to launch points on the Chinese mainland. The Z-21 could also use FARPs to refuel and rearm after missions, increasing the amount of time the helicopter spends supporting PLA units while reducing downtime between sorties.
Analysis Source: “直-21重型武直携带副油箱登场，设计逻辑才是亮点” [The Z-21 heavy attack helicopter, equipped with external fuel tanks, has made its debut; its design logic is the highlight], 头条 [Toutiao], May 5, 2026, https://www.toutiao.com/article/7635251871342527030/.
